3D LUT Integration
All Bolt receivers now have integrated 3D LUTs that output custom graded video, which is ideal for directors and producers who want to monitor footage with a color palette that’s closer to final grade rather than a flat RAW image. Custom LUTs can be loaded via the Bolt Manager and selected on individual Bolt Receiver OLED screens .
Long Range Panel Antenna
To get the most out of your Bolt system, the Panel Antenna is a go-to accessory for challenging environments that require robust reliability in high RF interference areas. This high gain antenna is compatible with the Bolt 600 and 2000, complete with mounting hardware and a convenient bracket for positioning the Bolt’s signal exactly where you need it .
Real-Time Cross Conversion & Extras
For added convenience, all Bolt models support real-time cross conversion from TX to RX, letting you automatically cross convert from HDMI to 3G-SDI, or vice versa, without any extra hardware. All Bolts include real-time standards conversion of resolution and/or frame rate control directly on-board the receiver OLED.
USB 3.0 GRAB Engine
Capture cards are a thing of the past with Teradek’s new GRAB Engine. Every Bolt RX includes a USB 3.0 output that allows you to ingest Bolt’s uncompressed video feed directly into a computer or DIT cart without added delay .
Technical Specifications

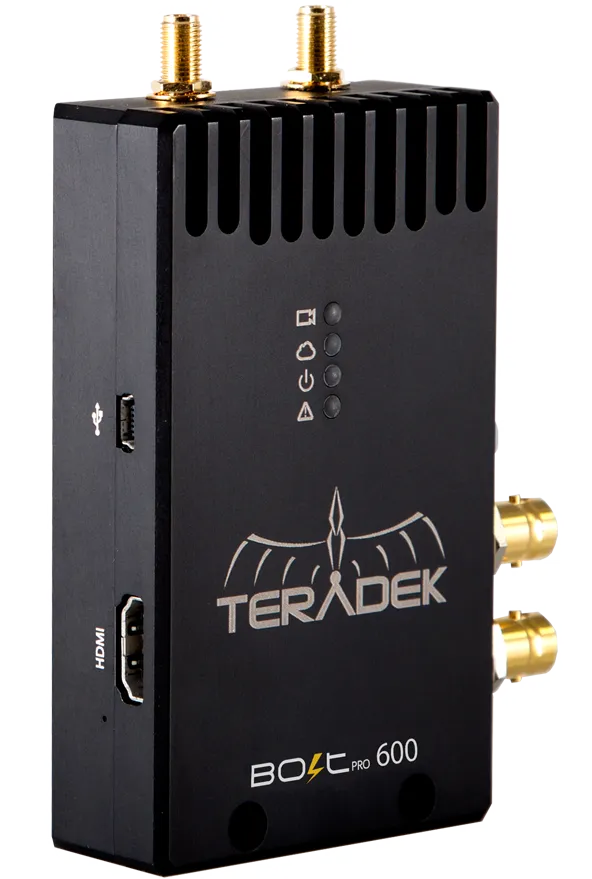

Bolt 600 Transmitter
Video Input
- 1 x 75 Ohm BNC
- 1 x Type A receptacle HDMI
Video Output
- 1 x 75 Ohm BNC(Loop-out)
Video Delay (Tx to Rx)
- <0.001sec (when no video format conversion is enabled)
Color Sampling
- Y:Cb:Cr = 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v.1.1.0 or later); RGB 4:4:4 (HDMI out, 8-bit color)
Supported Resolutions
- 1080p60/59.94/50/30/29.97/25/24/23.98
- 1080psf30/29.97/25/24/23.98
- 1080i60/59.94/50
- 720p60/59.94/50
- 480p59.94/576p50 (via HDMI ports only)
- 480i(NTSC)/576i(PAL)
Wireless
- Up to 600ft line of sight
- Non-DFS Frequencies:
- US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
- EU & JP: 5.19 ~ 5.23 GHz
- DFS Frequencies:
- US: 5.27 ~ 5.55 GHz and 5.67 GHz
- EU & JP: 5.27 ~ 5.67 GHz
RF Power
- 19dbm EIRP(with two 5dbi TX antennas)
Noise Rejection
- Can coexist with WiFi and 5GHz cordless phones
Audio
- Format Support: 48kHz 24-bit PCM

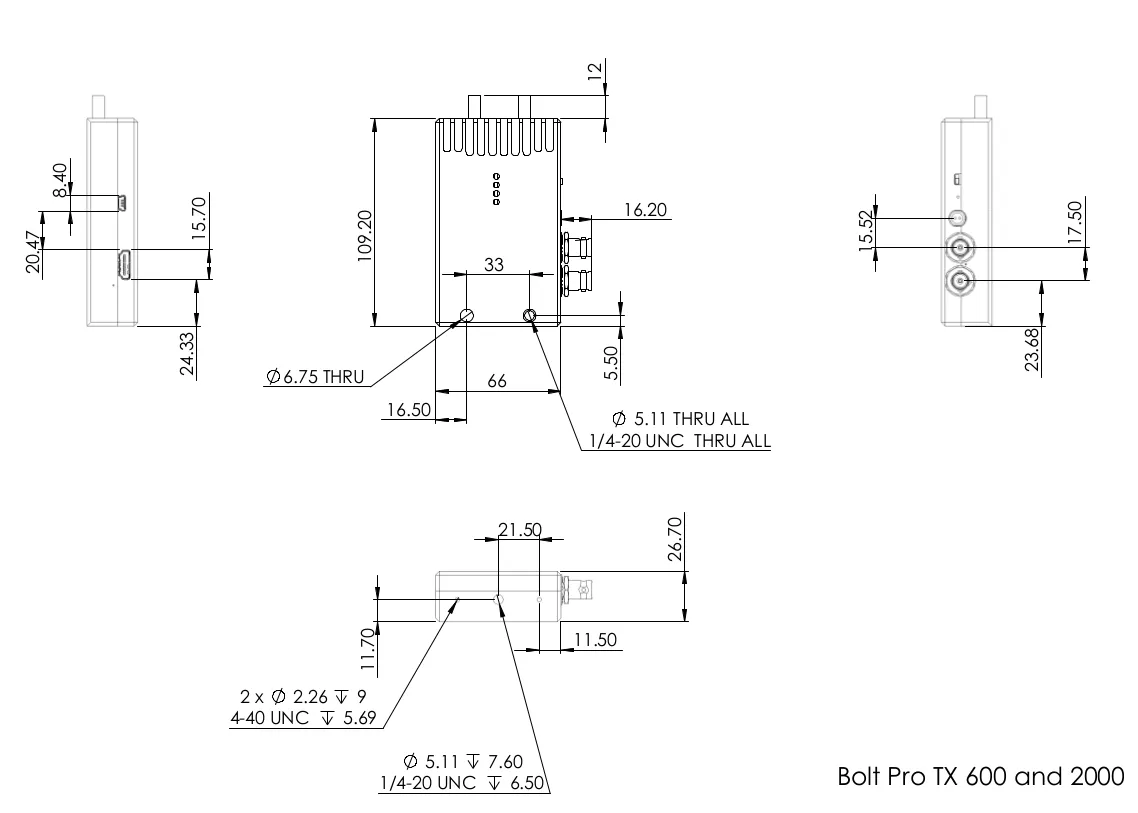

Physical
- Dimensions: 4.3" x 2.6" x 1.1"(109.2 x 66.0 x 26.7mm)
- Weight: 9.9 oz(282g)
- Operating temperature:
- Milled Aluminum
Mountability
- Multiple mounting options with 4-40 holes
- Multiple mounting options with 1/4" hole
Power
- 2-Pin Connector 7-28 VDC
- No Internal Battery
- Consumption: 7.8 Watts
