Miller® Trailblazer® 330 Diesel (Kubota®) Engine Driven Welder with Polarity Reversing & Wireless Interface Control 907849004

The Miller® Trailblazer® 330 Diesel with Polarity Reversing and Wireless Interface Control is a 330 amp DC welder and 12,000 watt AC generator that features a Kubota® 24.8 HP diesel engine. The built-in polarity reversing circuitry allows you to change output polarity from the Trailblazer's control display, without the need to disconnect and reconnect your welding cables.  This feature saves time and money when switching from one welding procedure to another.  The Wireless Interface Control (WIC) gives you full, wireless remote control up to 300 feet from the welder.  The handheld remote functions as a remote engine start/stop, as well as a remote welding process, output amperage & voltage and weld parameter memory recall  control.

The Trailblazer 330 Diesel's built-in ArcReach® technology allows the Trailblazer 330 to communicate directly with a Miller ArcReach wire feeder or remote control through the welding leads, eliminating the need for costly control cables. Miller's exclusive AutoSet™ technology allows you to access pre-programmed welding parameters, based on metal thickness and welding process, for easy set up.  You can also fine tune your output amperage and voltage manually, to suit your welding style.

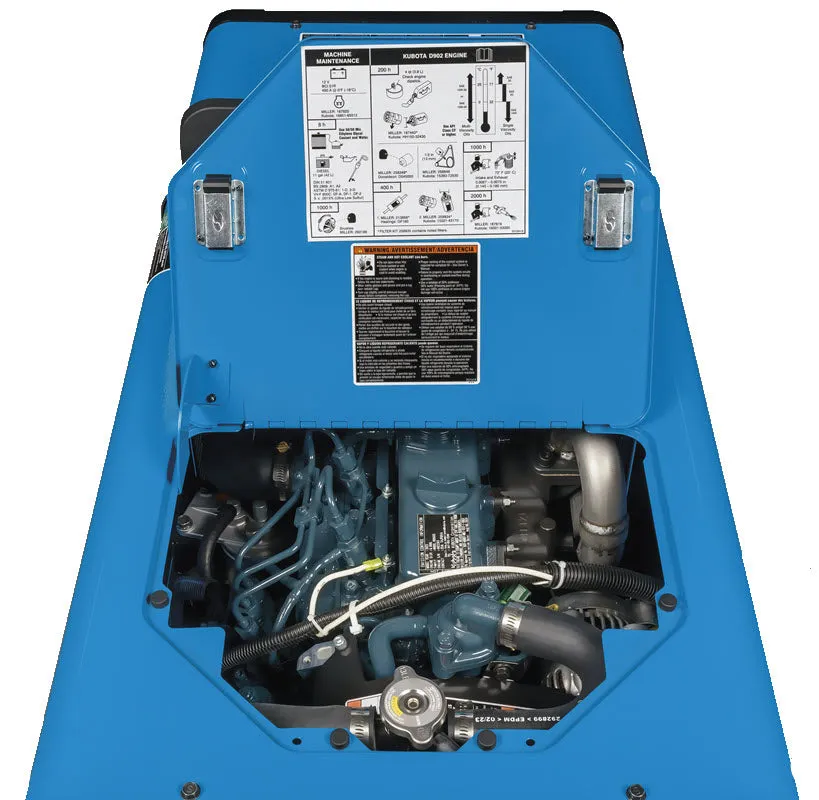

The Miller Trailblazer® 330 Diesel features a Kubota® 24.8 horse power diesel engine with Miller's exclusive Auto-Speed™ technology.  Auto-Speed matches the engine speed with the welding load. This means that the engine can run at optimum RPM rather than full RPM while under load. This translates into reduced fuel consumption, quieter operation and longer engine life.

The Trailblazer® 330 Diesel has the most smooth, stable welding arc in the business. It produces X-Ray quality welds whether you are using MIG, Stick or DC TIG welding processes.  For MIG welding, the 330 Diesel has a direct spool gun connection for Miller Spoolmatic® series and Spoolmate™ 200 spool guns, eliminating the need for a WC-24 weld control.  For stick welding, the Trailblazer 330's Dynamic Dig™ feature produces a consistent arc that is highly adaptive. Lift-Arc™ DC TIG with Quiet Pulse™ is standard on every Trailblazer 330, and produces outstanding results in TIG welding applications time after time.



Processes (X-Ray Quality)

• Stick (SMAW)
• MIG (GMAW)
• Flux Cored (FCAW)
• DC TIG (GTAW)
• Pulsed DC TIG (GTAW-P)
• Air Carbon Arc (CAC-A) Cutting and Gouging (3/16 in carbons)
• Air Plasma Cutting and Gouging with optional Spectrum models
• AC Generator

  Applications
  Industrial Applications
  Fabrication
  Maintenance
  Repair
  Structural Steel Work
  Pipe
  Sheet Metal

  Features
• Polarity Reversing - Reduce downtime when switching between welding procedures. Built-in polarity reversing circuitry allows you to change weld output polarity at the control display, without disconnecting and reconnecting your welding cables.

• Wireless Interface Control - With wireless interface control, you can change welding processes, adjust parameters, select and save preset programs, turn the machine on/off, get service reminders and more from wherever you are on the jobsite. Extend time between fill ups and maintenance intervals while eliminating the need to go back to your machine to make adjustments.
  300 foot operating range from welder to remote
  View engine status, fuel level, and battery charge level of remote.
  View and select between all available processes.
  Turn contactor on/off manually in remote welding mode. Turn engine on/off with remote.
  Save custom presets in up to four programs and easily switch between pre-programmed settings.
  Quickly adjust and save arc control settings including DIG, DIG range inductance and Auto-Stop.
  Adjust amperage or voltage, by increments or percentage, while welding.

• ArcReach® standard on all models - ArcReach® technology uses the existing weld cable to communicate welding control information between a Miller® ArcReach® feeder or ArcReach® Stick/TIG remote and Trailblazer® 330.

• This technology eliminates the need for control cords, and their associated problems and costs.
• Designed for the professional welder - The Trailblazer® 330 delivers unbeatable arc performance in all weld processes, providing the smoothest, most stable arc in the industry.
• Auto-Set™ technology - Auto-Set offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.

• Ultra-adaptive arc control - Unlike conventional DIG that provides a preset amount of short-clearing current, Miller-exclusive Dynamic DIG technology works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. Delivers a smoother more consistent arc that can be tailored to match application, material, fit-up and welder technique.

• Lift-Arc™ DC TIG with Quite Pulse™ - DC TIG welding arc is initiated without the use of high frequency. Simply touch the tungsten electrode to the work piece and lift. Quiet Pulse pulsed TIG welding gives you superior control of the welding arc while eliminating the noise typically associated with pulsed TIG welding processes.
• Direct spool gun connection - Connect a Miller Spoolmatic® Series or Spoolmate™ 200 spool gun directly to the welder. No need for a WC-24 weld control.
• Smart-Cor™ technology - Independent weld and generator power in an improved, more compact design.
  No interaction between jobsite tools and the welding arc, resulting in:
  Stronger, cleaner, more efficient generator power
  Reduced size and weight
  Improved arc performance

• Auto-Speed™ technology - Automatically adjusts the engine speed to run at lower speeds depending on the total power needed, resulting in:
  Exceptional fuel-efficiency
  Extended run times
  Quieter operation
  Reduced emissions
