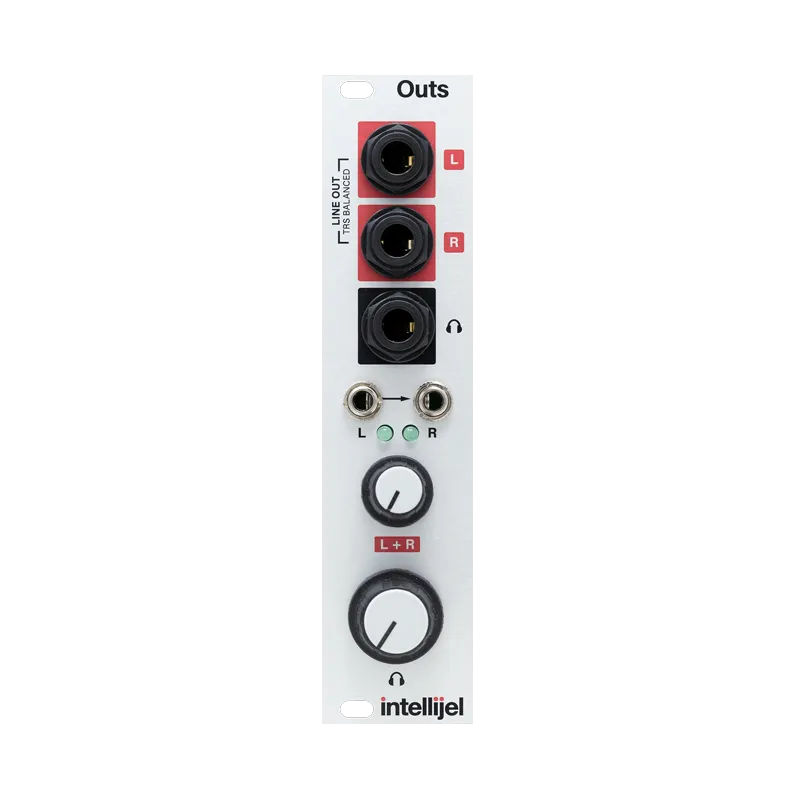

Outs enables your modular system to output both professional and prosumer compliant audio, and send it to external amplifiers, mixers, recording devices, or DAW interfaces. Using the L R Level knob, it scales modular-level voltages down to the level required to drive external gear at either the 4dBu balanced professional line-level standard or the -10 dbV unbalanced standard.

Headphone monitoring is also provided via a low noise built-in headphone amp (with its own independent level control), capable of driving a wide range of impedances — from studio grade headphones to portable style earbuds.

To use Outs, simply connect the final output of your patch to the ⅛” inputs (where the built-in activity LEDs light up to indicate the presence and intensity of the input signal). The left input is normalled to the right, so you can create a stereo signal from a mono source. Or if you have an Intellijel Mixup, you can remove a jumper from its rear panel, and connect it to the Outs module using the 3-pin link cable included with the Mixup.
